The cylinders on No 9 needed boring as they had become worn after many years of hard work. There was a score line in the RH one which required skimming. N.L. Engineering Ltd came up from Wigan to do the job. They completed the work over 3 days between the 3rd & 5th December. The boring machine is an amazing piece of kit and John and Jake have done an excellent job. The cylinders are as smooth as.........! There are some videos in that section of the Blog for you to enjoy. Apologies for the length of this Blog but it is a very important part of No 9's restoration. Most of the photos credit Jake Morrow.
To start the covers on the rear of the block had to be removed. The nuts looked as if they were going to give trouble but after heat was applied to each a sharp tap from a hammer released them!
 |
| Alan applying heat to the RH nuts whilst Roddie removes the ones on the LH one. |
 |

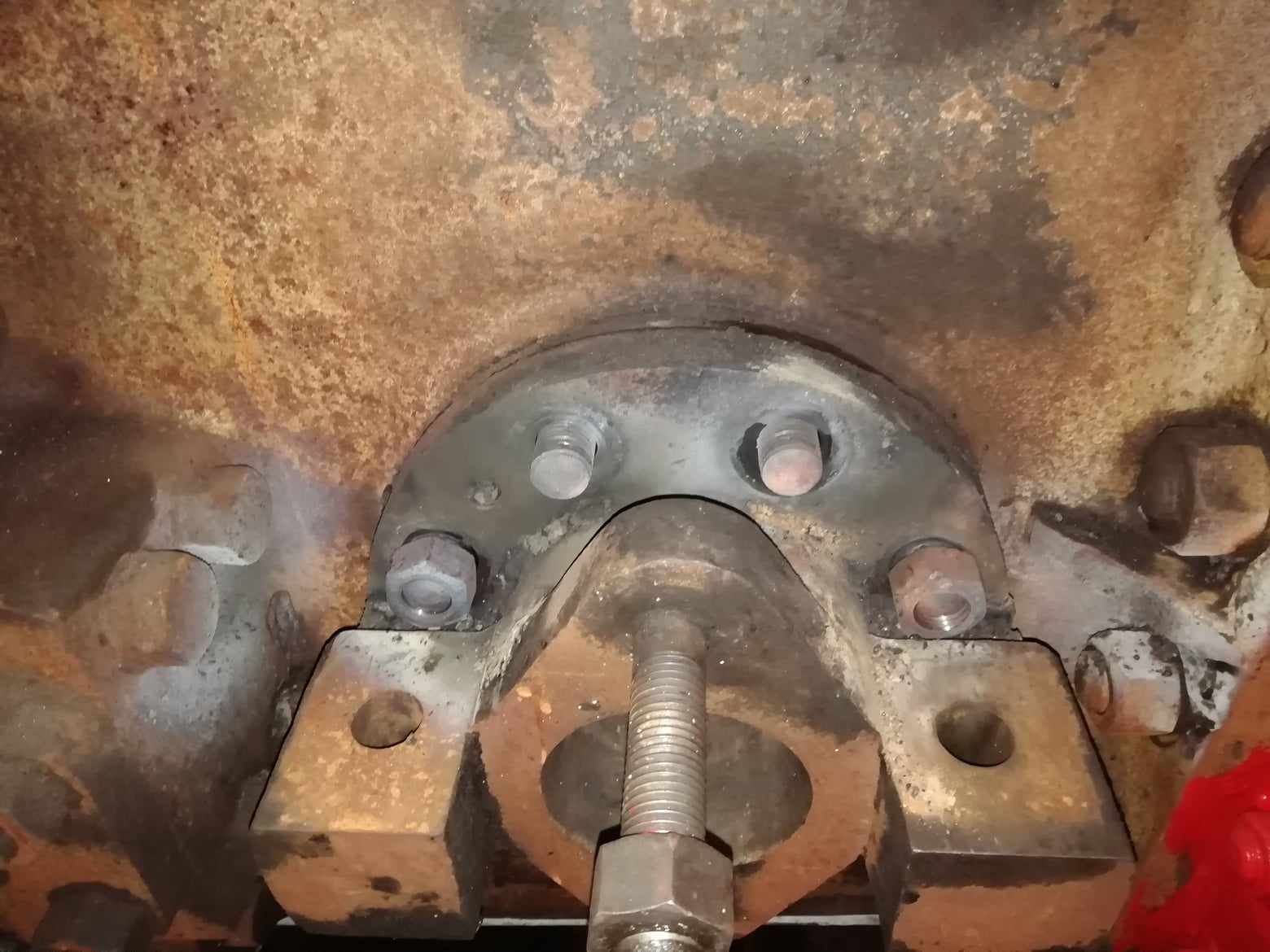

| LH cover about to come off. |
 |
| LH cover off and marked to show its position on the block. |
 |
| Covers off - boring can begin! |
 |
| Boring out LH cylinder. |
 |
| At the rear of the cylinder block. |
 |
| Part of the machine. |
 |
 |
| An overhead view of the boring machine. |
 |
| The 2 cylinders bored out. |
 |
| RH cylinder. |
 |
| A view from the rear of the block. |
 |
| The nearly finished job. Just the removal of the skimmimg to do! |
 |
| And a wee reminder of what they were like! |
